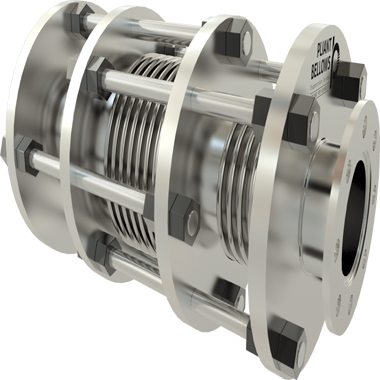

Inline Pressure Balanced Expansion Joints

Inline Pressure Balanced Expansion Joints
Inline Pressure Balanced Expansion Joints
Product Code : Inline Pressure Balanced Expansion Joints
Brand Name : Kwality Products
Product Description
Our Inline Pressure Balanced Expansion Joints are designed to absorb axial movement without any pressure loading on the system. This balancing is done by using two bellows both at line pressure bound together and acting in opposite directions. These joints are widely used in the piping or equipment is not acceptable. They balance out the pressure forces and the force take to move the joint is not balanced itself.

The flow and balancing bellows are compressed in operation and the combined axial spring force acts on the piping or equipment. The forces require to move the bellows are of low magnitude which is usually not objectionable. These joints are mainly used to installed at change of direction. They are used where pressure loading on the piping  is not acceptable. The complexity of these Inline Pressure Balanced Expansion Joints makes it an expensive unit. They are completely suitable for those cases where the problems charged by the pressure loading would be more pricey.

The bellows of in-line pressure is uniquely designed which absorb thermal motion while reducing the pressure thrust load on the piping without any change in the direction of the piping.  In-line pressure balanced expansion joint is used where the location of the expansion joint prohibits or makes it very costly to install main anchors.  These Inline Pressure Balanced Expansion Joints are used where the location of the expansion joint forbids and make it very costly to install main anchors. Due to complete cross liking change in the volume of the flows bellows, it causes equal but opposite change in the volume of the balancing bellows.
